KTC Auto Tools

SKU: POR1261

Porsche 911/Boxster Engine Timing Tool Kit

Comprehensive 8-piece tool kit to establish proper engine timing when performing major engine / valve-train service on the following Porsche models:

Porsche 911 (engine codes 996/997) up to 2001
Porsche Boxster (engine codes 986/987) up to 2002

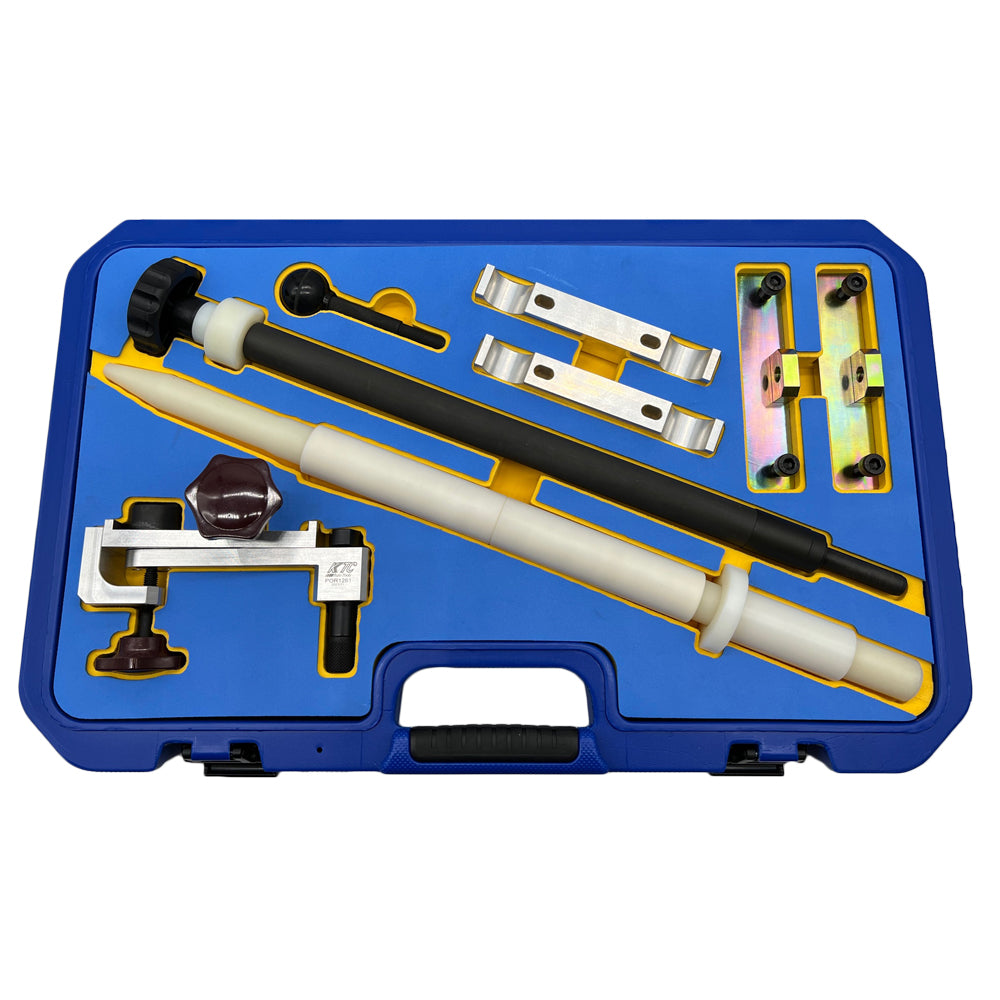

The kit comes packaged in a custom blow-molded storage/carrying case and contains the following items:

1 ea. TDC Alignment Pin (factory number 9595) – Locks crankshaft at TDC.

1 ea. Camshaft Lock (factory number 9612) – To establish the allocation between the intake and exhaust camshafts.

2 ea. Camshaft Supports (factory number 9611) – for retaining the camshafts in position with the valve cover removed.

2 ea. Camshaft Holding Tools (factory number 9624) – Used to retain the camshafts before removing the valve cover and during reassembly.

1 ea. Connecting Rod Centering Mandrel (factory number 9608) – Positions the small of the connecting rod in preparation for fitting the piston and wrist pin.

1 ea. Piston Pin Driver and Extensions (factory number 9602) – Used to insert the wrist pins.

Application Detail:
Porsche 911 (engine codes 996/997) up to 2001
Porsche Boxster (engine codes 986/987) up to 2002
